Our company produces high-precision masks, including ordinary soda mask and quartz mask, which can support customers' drawing processing and also provide drawing service, with the highest precision up to 0.1um and the minimum line width up to 0.6um.

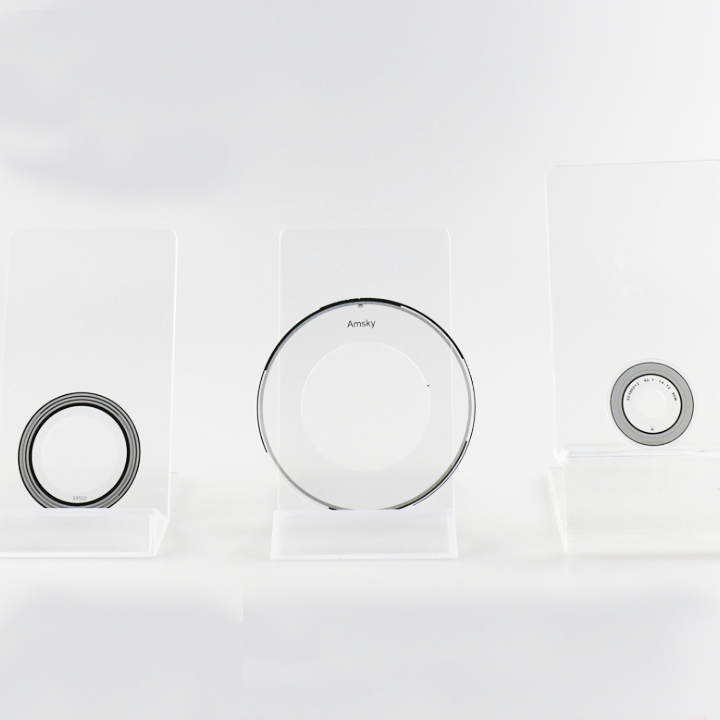

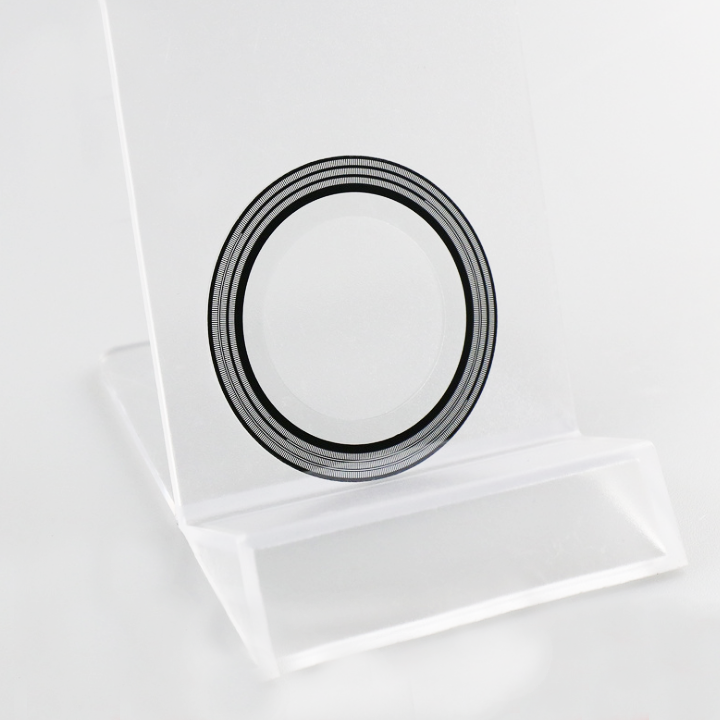

Encoding disk refers to a digital encoder that measures angular displacement. It has the advantages of strong resolving power, high measurement accuracy and reliable work. It is one of the most commonly used displacement sensors for measuring the position of the shaft rotation angle. The code disc is divided into two types: absolute encoder and incremental encoder. The former can directly give the digital code corresponding to the angular position; the latter uses a computing system to make the pulse increment generated by the rotating code disc against a certain reference number addition and subtraction.

CUSTOMIZEBLE

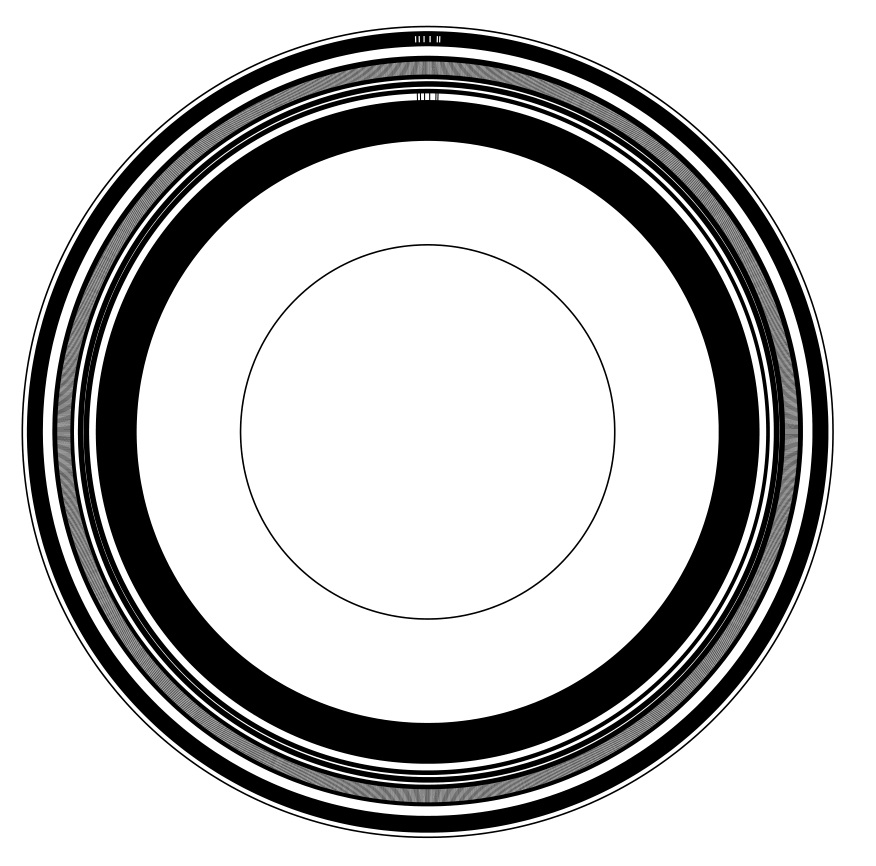

The content of the code plate drawing is as follows:

1. Need to attach materials

2. Precision

3. Overall dimension, tolerance, thickness

4. Making effect drawings: the classification of positive and negative boards. (If you consider the price factor, you need to emphasize how many magnifications are allowed to see defects below)

5. Need to provide detailed CAD drawings
